3-Axis Machining
- Motion
- X · Y · Z linear axes
- Tool Access
- One primary tool orientation per setup
- Best For
- Faces · Pockets · Slots · Prismatic Features
- Setup Character
- Additional orientations generally require repositioning or another setup.
Simultaneous multi-axis machining for complex metal and plastic parts requiring multi-surface access and controlled feature relationships.
Complex geometries · Compound angles · Fewer setups
Request a 5-Axis QuoteRequest a 5-Axis Machining Quote
5-axis machining provides additional tool orientation for components whose features span multiple faces, angles or complex surfaces.
Machine features across multiple orientations while reducing the need for repeated manual repositioning.
Access angled faces and features that are difficult to approach from a single fixed tool direction.

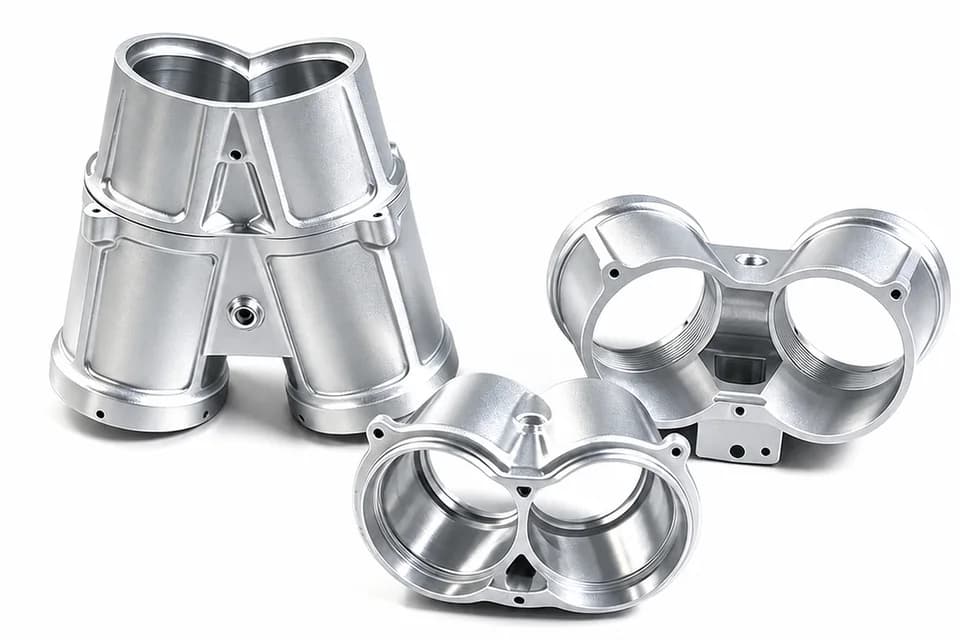

Support parts with contoured and multi-directional geometry requiring coordinated tool orientation.
Reduce repeated re-clamping where maintaining relationships between features on different faces is important.
Engineering note: fewer setups describes a capability direction, not a guarantee that every component can be completed in one physical setup. Fixture access, part geometry, tooling and process requirements still determine the final machining plan.
The number of machining axes influences tool access, part orientation and the number of setups required for complex geometry.
Machine configurations vary. Rotary motion may be provided by the table, the tool head or a combination of both, and the applicable rotary-axis arrangement depends on the machine architecture. This comparison describes general tool access rather than one universal machine layout.
The value of 5-axis machining comes from tool access and setup strategy rather than from the number of axes alone.
Multi-directional tool access can reduce the need to repeatedly reposition suitable complex parts between machining operations.
Reducing re-clamping can help maintain the relationship between features located on different faces.
Additional tool orientation can reach angled and multi-surface features that are difficult to machine from a fixed direction.
Where geometry allows, tool orientation can improve access and reduce unnecessary tool reach during machining.
5-axis machining is not automatically faster, cheaper or more accurate for every part. Geometry, tooling, programming, setup, material and production quantity determine whether multi-axis machining provides a practical advantage for a specific project.
Machining capability depends on geometry, material, feature relationships, part dimensions and drawing requirements.
* Final achievable tolerance depends on material, geometry, feature relationships, part dimensions and machining requirements. Drawing review is required before production.
Five-axis motion increases tool-access flexibility, but cutters still require physical clearance and stable cutting conditions.
Not Recommended
Features hidden behind adjacent geometry may remain difficult to reach even with multi-axis tool orientation.
Standard Practice
Where functional requirements allow, provide adequate access around critical faces and features for a practical tool approach.
Not Recommended
Deep narrow features may require long tool reach, reducing cutting-tool rigidity and increasing machining difficulty.
Standard Practice
Where possible, increase access, reduce unnecessary depth or use more machinable transitions to support a stable cutting strategy.
Engineering review considers cutter clearance, holder clearance, tool reach, feature depth and workholding together. Additional axis motion improves orientation options, but it does not remove the physical constraints of the cutting tool and fixture.
Material selection should consider mechanical requirements, geometry, dimensional stability and finishing requirements.
01 / Metals
02 / Engineering Plastics
Finish compatibility depends on the material and project requirements.
Review part geometry, tool access and setup strategy before machining planning.
Support development parts, low-volume builds and repeat manufacturing programs.
Coordinate drawing review, dimensional inspection and material documentation according to agreed project requirements.
Upload your CAD files for engineering review and a project-specific 5-axis machining quote.
